A FTI Magnetic Drive Centrifugal Pumps uses a balanced magnetic field to create the rotation of the fluid impeller. Unlike a traditional centrifugal pump which has a direct drive connection between impeller and motor, a mag-drive pump eliminates the direct drive mechanism and replaces it with a magnetic field.
Finish Thompson (FTI) manufacture a range of magnetic drive centrifugal pumps.
DB and SP series are two of the most premium magnetic sealless centrifugal pump from FTI.
Both DB and SP series are magnetically coupled where there is no seals needed or replace. Both DB and SP series are excellent for high aggressive fluids, chemicals, acids, caustics and corrosives.

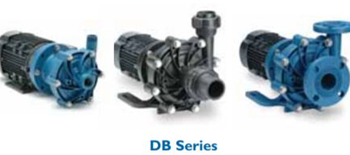

The DB series (flooded suction)
DB series FTI magnetic drive pump is the new standard for hydraulic efficiency and corrosive fluid handling. With design-aided magnetic flux and computational fluid dynamics technology, the DB series packs all the high-pressure, fluid-handling punch you would expect from FTI pump. Constructed from polypropylene or PVDF, the DB series operates durably in the most corrosive of environments.

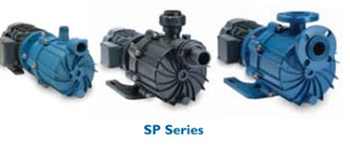

The SP series (self-priming)
SP series big on power, yet short on energy consumption, the SP series from Finish Thompson is one of the most versatile, and economical centrifugal pumps on the market. The exclusive SP series combine deep-lift capabilities (up to 25 feet/7.6 meters) and lightning-fast priming (18 feet/ 5.5 meters in 90 seconds) with the advantages of magnetic drive technology-ensuring ease of operation with no seal replacement, no leaks and the capability to run dry without damage.
Its innovative design and corrosion-resistant materials make the SP series ideal for handling even the most difficult applications.
Technical Specifications (DB/SP Series)
|FEATURES||CAPABILITIES||INDUSTRIES & APPLICATIONS|
|Close-couple design||Up to 70% operating efficiency||Chemical manufacturing|
|Polypropylene or PVDF construction||High working pressure up to 90 psi||Metal plating/working|
|Replaceable shaft||High specific gravity handling-over 1.8 (sg)||Wastewater treatment|
|ISO 1940 G2.5 balancing||Maximum viscosity:|
|Mounts to NEMA and IEC motor frames||Maximum temperature:|
Polypropylene - 82°C
PVDF – 104°C
|Back pullout design||Paper mills|
|ATEX available (DB only)||Printing|
|OEM equipment supply|
|General pump applications|
Both DB and SP series are magnetically coupled where there is no seals needed or replace. Both DB and SP series are excellent for high aggressive fluids, chemicals, acids, caustics and corrosives
Aneka Mandiri is Finish Thompson Distributors in Indonesia
